Two out of four crew members lost their lives when the tanker “MS Waldhof”, loaded with 2,378 tons of sulfuric acid, capsized on the Rhine in 2011. A number of unfortunate factors contributed to the ship's accident - the Rhine was in flood and flowing faster than usual, and the Waldhof bypassed a current bend with an unfavorable outer radius and was thus exposed to additional currents. The main cause of the accident, however, was the incorrect loading of the tanker - a full 631 tons over the permitted weight.

In order to salvage the MV Waldhof, 900 tons of sulfuric acid had to be drained into the Rhine. Since this was done in a controlled manner, a fish kill was prevented. The situation would have been different if the tanker had been carrying oil, for example. The case shows how important strict regulations on the transport of hazardous goods (often referred to as “dangerous goods”) really are.

Definition of Dangerous Goods

The Transport of Dangerous Goods Act defines what exactly is meant by “dangerous goods” in §2:

“Dangerous goods [...] are substances and objects which, due to their nature, properties or condition in connection with their transport, may pose dangers to public safety or order, in particular to the public, to important common property, to the life and health of people, and to animals and property.” (Translated by the editors)

And it is precisely these dangers that must be minimized as good as possible. This is where regulations on the handling of hazardous goods come in. Which substances are considered dangerous goods and how they are to be classified is derived by the sender of the transported goods on the basis of classification characteristics.

Dangerous goods classification according to UN numbers

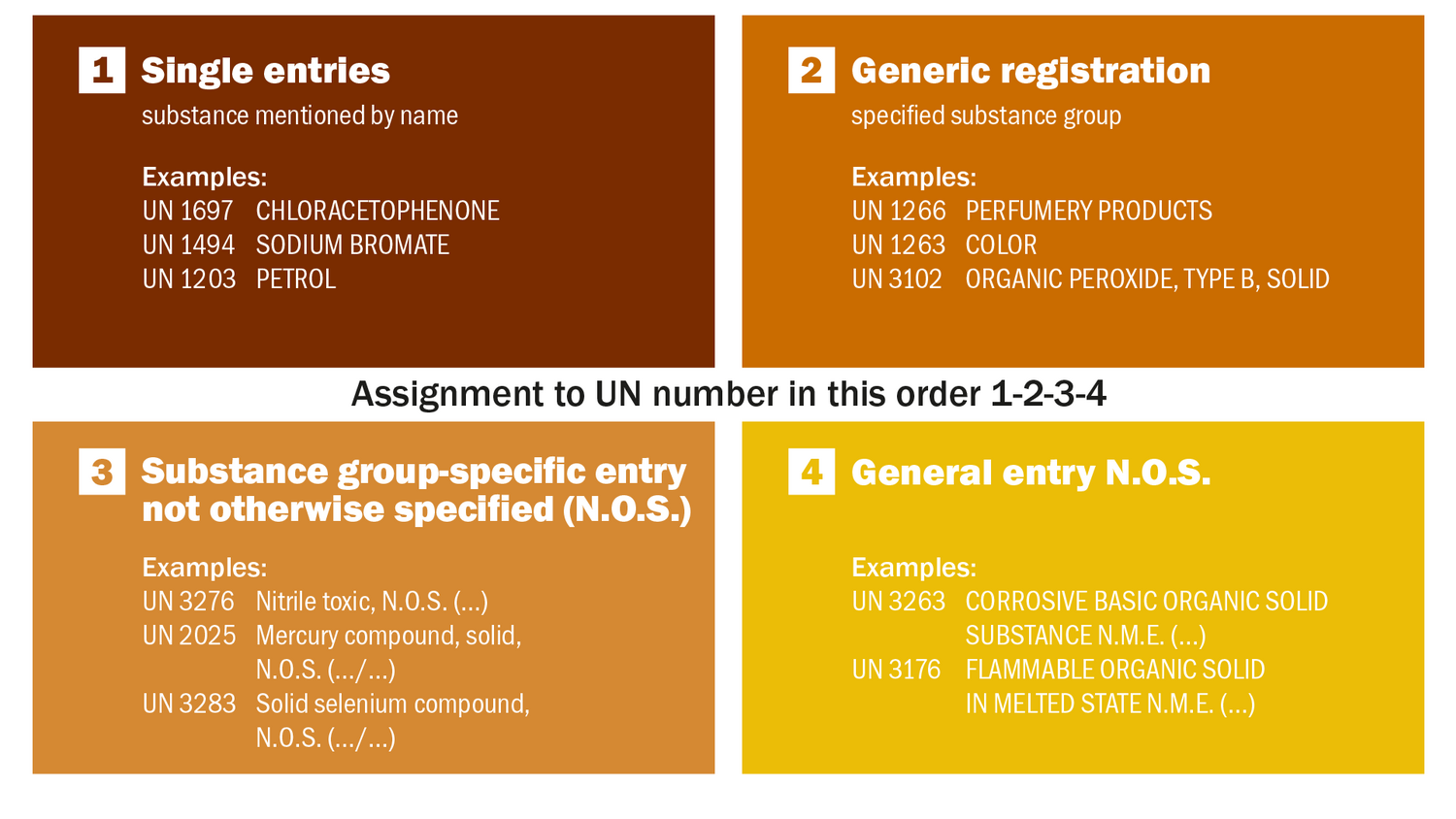

A United Nations (UN) committee of experts assigned UN numbers to transport goods that pose a hazard. The UN number (also called substance number) consists of four digits and can be assigned either to a specific substance or to a substance class:

Riege Dangerous Goods Grafik 2 en

Dangerous goods classes, dangerous goods labels and GHS labels - this is how dangerous goods are marked

Dangerous goods are divided into nine dangerous goods classes. These classes identify the main hazards that can emanate from a dangerous good. In addition, there are subclasses that describe the secondary hazards. Fortunately, these dangerous goods classes are standardized for all transport modes or routes - and are also independent of the transport route. Accordingly, dangerous goods must be marked with the same dangerous goods labels, regardless of whether they are transported by air or by truck.

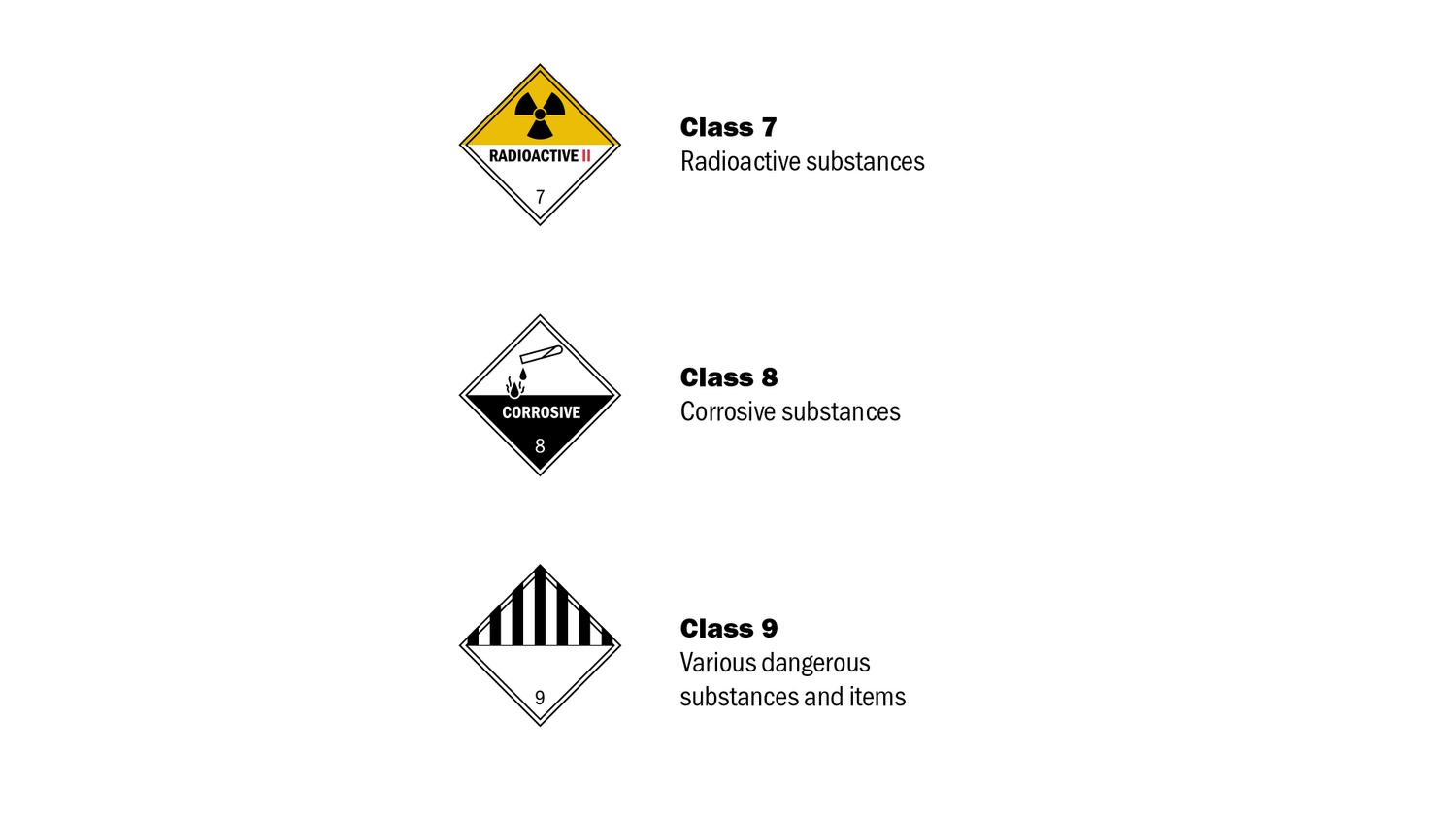

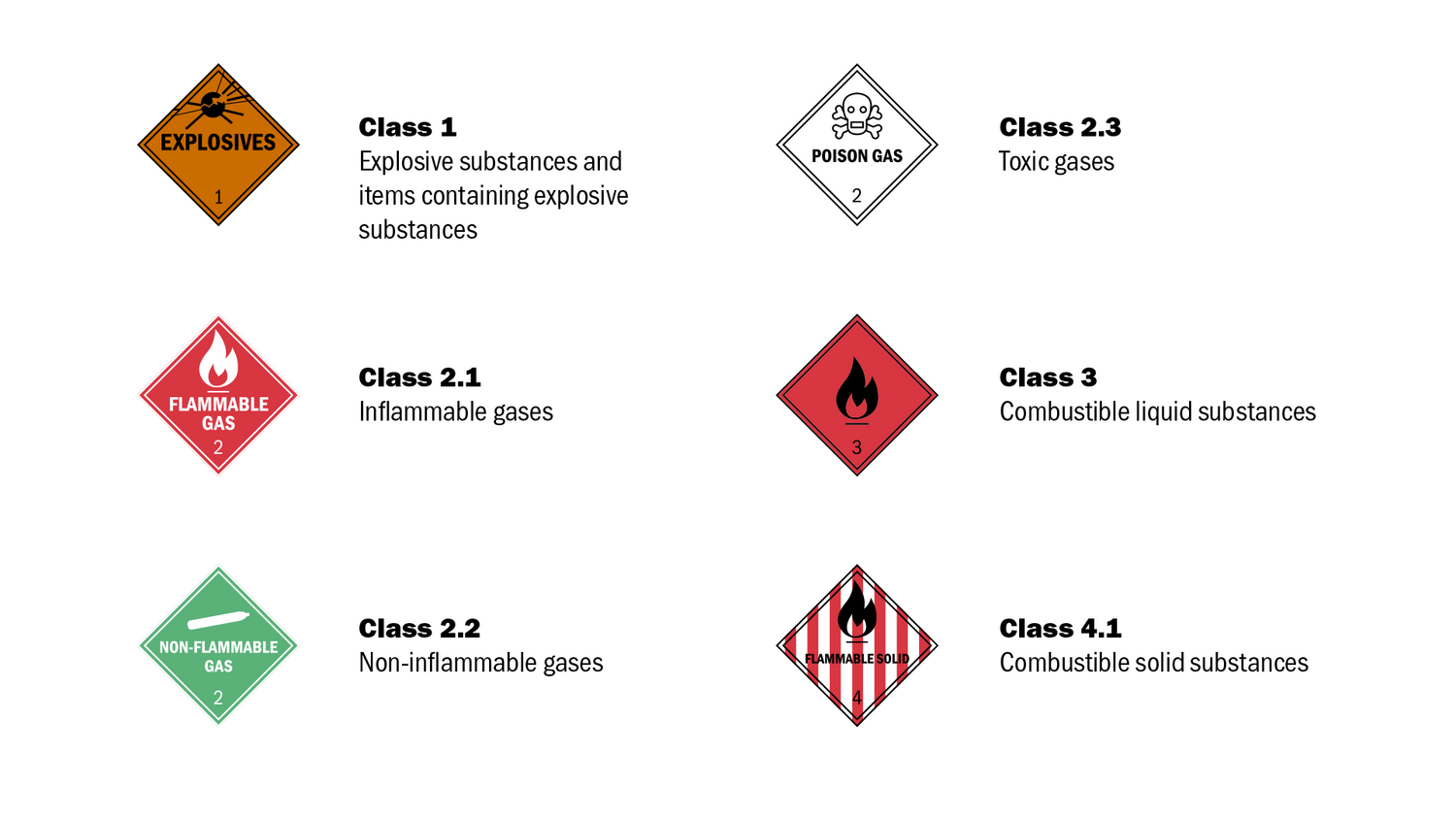

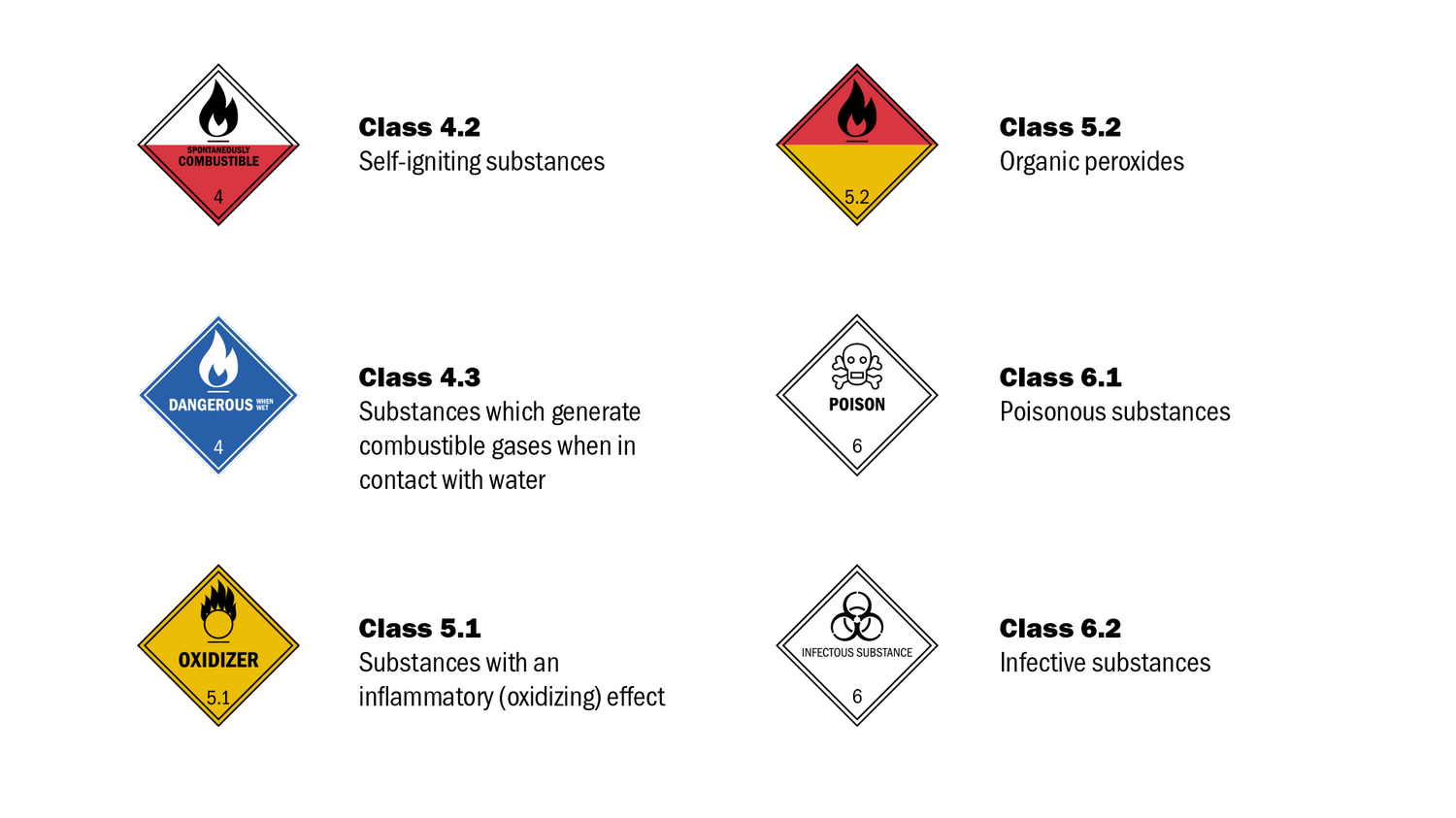

Here is an overview of the dangerous goods classes with the corresponding dangerous goods labels:

Riege Dangerous Goods Grafik 6 1

If a dangerous good is also a hazardous substance (i.e., a substance that also poses a danger independently of the transport), there is also a white icon with a a red edge next to the dangerous goods symbol, which indicates the danger posed by the transported good. This labeling is known as GHS labeling (GHS = Globally Harmonized System of Classification and Labeling of Chemicals).

For class 1 hazardous substances, the combination of the dangerous goods symbol and labeling could look like this:

Riege Dangerous Goods Grafik 5 en

Dangerous goods transport tips

Dangerous goods are transported all over the world - in Germany, by the way, the largest volume is transported by truck on roads. The number of regulations to be observed is correspondingly large. There are extensive national and international laws, guidelines and agreements for hazardous goods.

The requirements regarding classification, packaging, labeling, technical equipment of means of transport when transporting dangerous goods are very precisely defined. Organizational measures, duties and responsibilities of the parties involved in the transport are also specified in the laws. The following regulations apply to the relevant transport routes:

Mode of transport

Defined by


ADR (Agreement concerning the International Carriage of Dangerous Goods by Road)


IMDG-Code (International Maritim Dangerous Goods Code)


IATA-DGR (International Air Transport Association - Dangerous Goods Regulation)


RID (Reglement internationale concernent le transport des merchandises dangereuses par chemin de fer) → European Agreement on the Transport of Dangerous Goods on Inland Waterways

Inland waterways (EU)

ADN (L‘Accord européen relatif au transport international des marchandises dangereuses par voies de navigation intérieures) → Europäisches Übereinkommen über die Beförderung gefährlicher Güter auf Binnenwasserstraßen

Not every freight forwarder chooses to offer dangerous goods transportation or only transports certain hazardous materials. Overall, the service is worthwhile if large quantities of dangerous goods are transported frequently. For occasional orders, the training costs are too high.

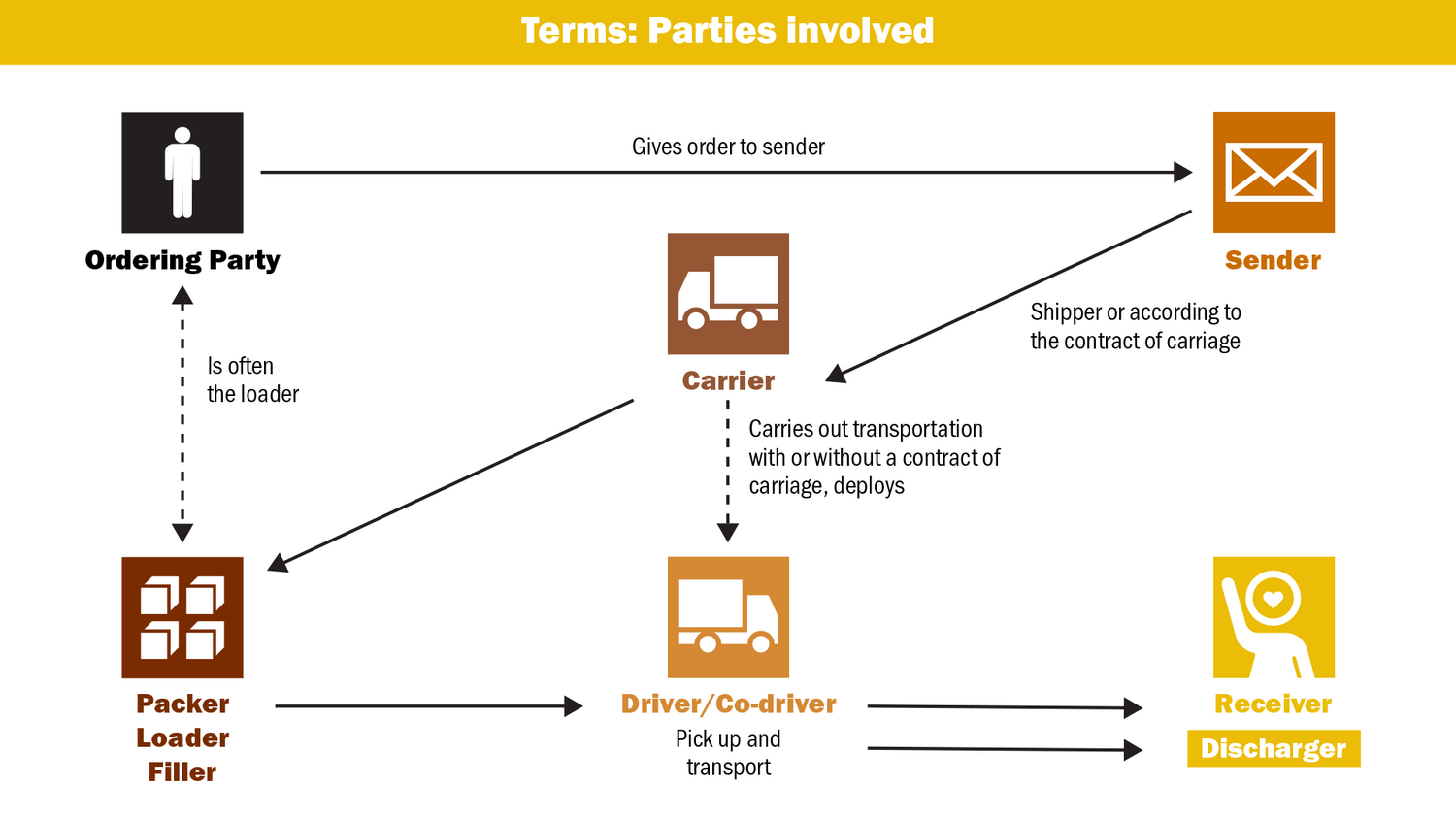

A freight forwarder acts as a carrier of the dangerous goods and must fulfill certain obligations. How exactly a dangerous good must be handled depends on the transport route and the UN number of the substance.

Riege Dangerous Goods Grafik 1 en

However, forwarders must always observe the following steps when transporting dangerous goods, regardless of the transport route:

#1 The correct labeling of the dangerous goods.

Whenever a hazardous material is transported, it must be appropriately ...

  • packed,
  • labelled
  • and declared.

Correct labeling is the responsibility of the shipper of the goods, not the forwarder:in. However, it is the latter's responsibility to ensure that documentation is in place as required and that it matches the markings. More on dangerous goods documentation in point #3.

The UN number provides information on how to handle the dangerous goods. A table (or a tool such as Scope) provides forwarders with detailed instructions on how to handle each substance.

#2 Employees must be trained to handle dangerous goods according to their role.

Whether warehouse workers, pilots, or captains, anyone involved in the transport of hazardous materials must be properly trained. Instruction can be provided either by the dangerous goods officer, another expert or an external provider. TÜV and DEKRA, for example, offer training courses for those involved in the transport of dangerous goods.

Authorized persons and other responsible persons (according to § 9 (2) StGb + § 14 (2) OWiG)

Conducted by

Dangerous goods officer, other expert person


Informal training certificate


Not specified. Recommendation: annually (skippers and loading officers at least every 5 years)


Internal or external training

Persons involved in the transport of dangerous goods (according to chapter 1.3 ARD/RID section 8.2.3. ADR and chapter 1.3 IMDG Code) (only for land)

Conducted by

Dangerous goods officer, other expert person


Informal training certificate


Not specified. Recommendation: annually


Internal or external training


Type, frequency, and training providers vary by mode of transportation.

#3 Check documents and pass on to drivers/captains and shippers

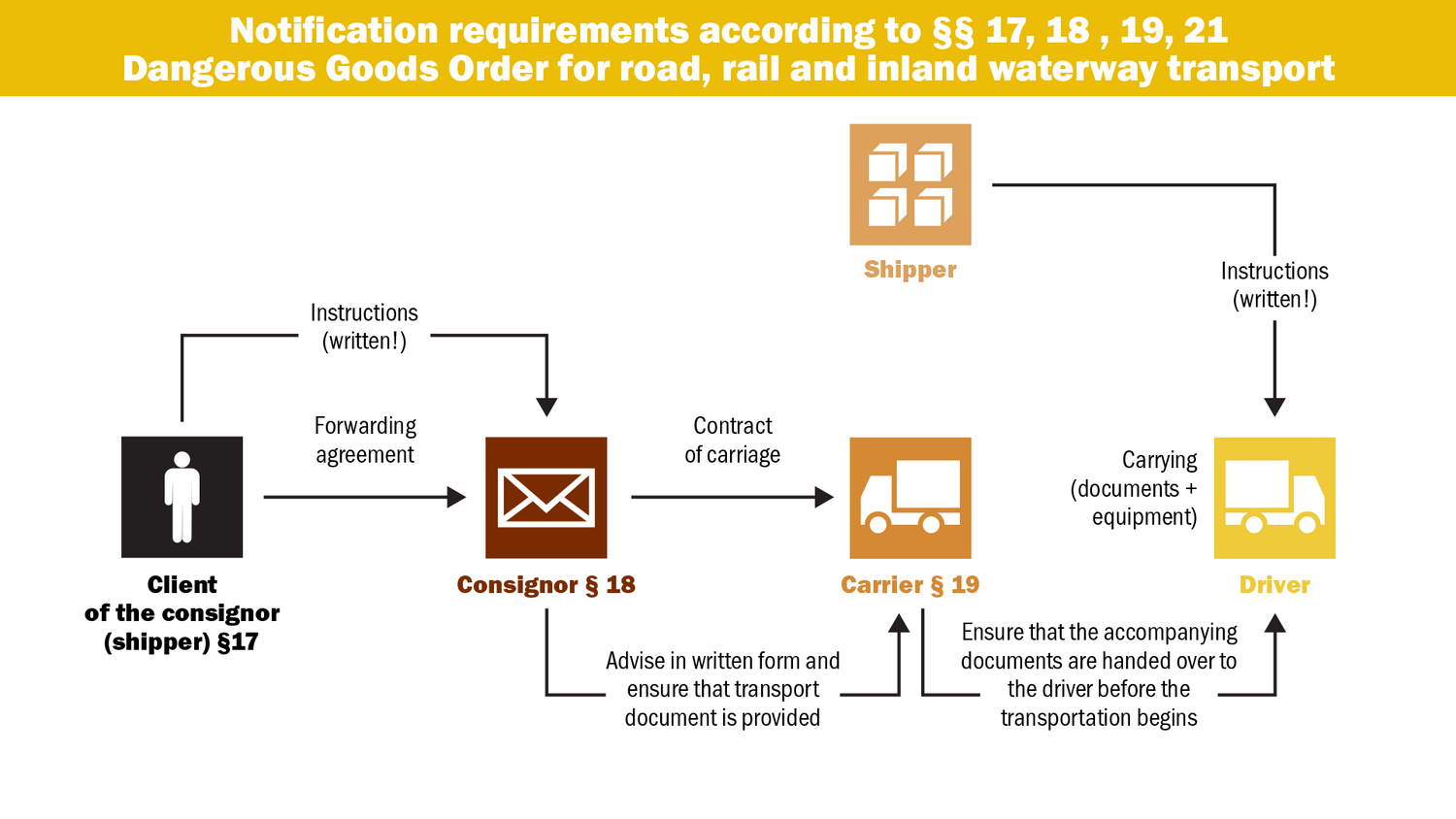

The following chart depicts the legal notice requirements when transporting hazardous materials. The “transport documents” that a carrier must provide again differ depending on the mode of transport.

Riege Dangerous Goods Grafik 3 en

Here is a list of the required accompanying documents for dangerous goods transports:

  • Material Safety Data Sheets
  • ADR transport document
  • CMR waybill (the dangerous goods points must be entered here)
  • IMO declaration including IMDG code

For air or sea transport, the Shipper's Declaration is required, which contains all important information on dangerous goods and must be handed over to the carrier by the freight forwarder. The Shipper's Declaration for Dangerous Goods, often referred to as the Shipper's Declaration for short, is an attachment to the air waybill (AWB) that must be completed when transporting dangerous goods by air or sea. The air waybill itself refers to the existence of a dangerous goods shippers declaration. The obligation to complete a Shipper's Declaration results from the Dangerous Goods Regulations (DGR) of IATA. Another document accompanying the air waybill is the Notification to Captain (NOTOC).

The NOTOC is the most important document for the captain with regard to the transport of dangerous goods and contains, in addition to the dangerous goods classes and properties, decisive information on how dangerous goods must be transported (e.g., where the ventilation must be switched off so as not to supply the cargo hold with oxygen, where cooling is required, which substances must not be stored next to each other, etc.).

In this article we list what to consider when shipping lithium-ion batteries and lithium-metal batteries.

Every year a new complete set of IATA DGR Regulations is issued. In addition, regulations also change during the course of a calendar year. These changes are published in so-called Ammendments and can be found on the IATA website.


For forwarders, the challenge in handling dangerous goods is not so much about the correct labeling and packaging of the goods (as this is done by the shipper), but rather about the correct documentation and special care during transport as well as the appropriate training of all employees involved.

Currently, most documents still have to be printed on paper in the old-fashioned way (e.g. the shippers declaration). However, the trend is towards digital systems that at least automate the documentation effort and directly create and print the correct documents. In the future, it is to be expected that documentation will also take place on a digital level.
